Smart Electronic Index

Request for price and quantity
Tested in biggest and most demanding Smart Metering Rollouts across Europe.
Unit price from:
110€

Request for price and quantity
Full smart metering functionality
Full smart metering functionality
Different types of wireless radio communication
Different types of wireless radio communication
Long life expectancy of a battery
Long life expectancy of a battery
Patented sensorics
Patented sensorics
Full support
Full support

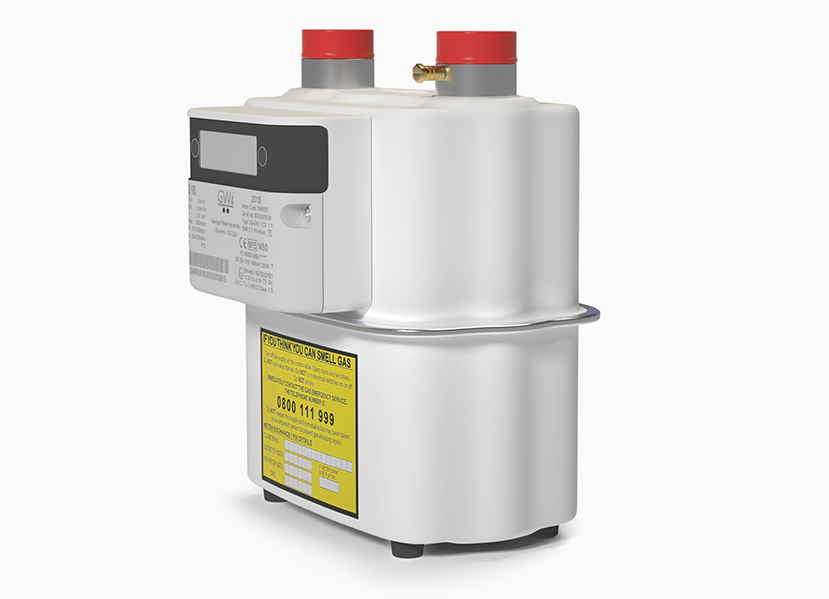

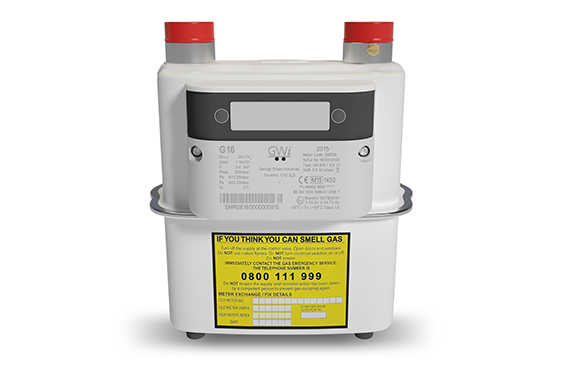

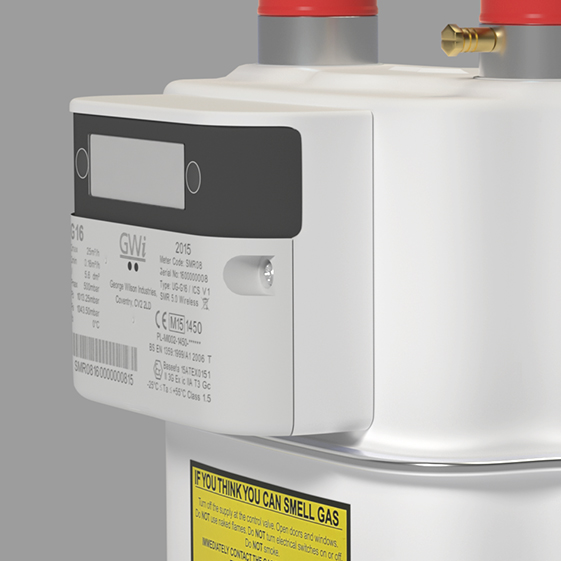

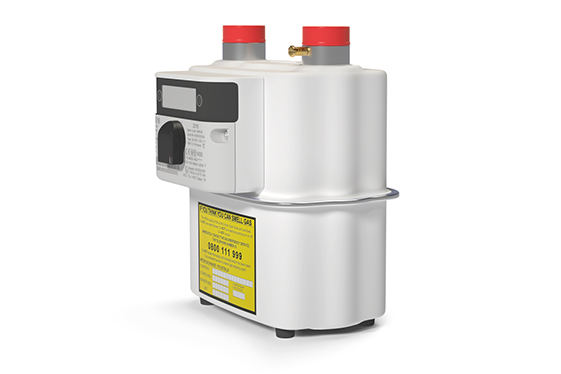

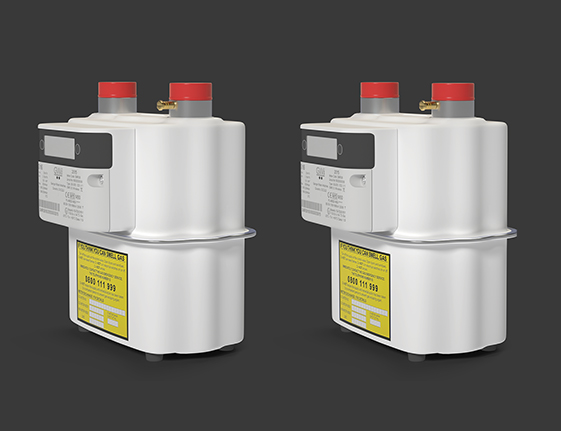

Smart Electronic Index

Electronic battery powered communication device that turns standard mechanical gas meters into Smart Gas Meters. With its patented sensorics, modular design that enables the use of a different types of wireless radio communication modules, powerful microprocessor unit, state of the art high-tech design of battery powered power supply that enables more than decade of constant and reliable operations.

High-tech state of the art design of electronics

  • Full smart metering functionality (including, prepayment, billing, tariffs, data and communication security etc.).
  • Different types of wireless radio communication modules available.
  • Battery powered with more than 10 years of life span/operations.
  • Patented Hall sensor technology, tamper detection, remote valve control.

Tested in field: UK Smart Metering Rollout, Netherlands, Poland

  • ZigBee 2,4GHz, ZigBee 686MHz, Double Band ZB (2,4GHz and 868MHz), MBUS 868MHz, MBUS 169MHz, GPRS, Narrowband, LoRa.
  • Using standards for secure communication: GBCS, SMETS, DLMS, DSMR.
  • MISRA compliant embedded software.
  • Verified products: CPA (UK Customer Product Acceptance (NCSC), MID, ATEX, RED and TRAC (ZigBee alliance) etc.

Full support of introducing the product to the market

Functionality adjusted to specific standards and demands of each country and customer. Developed by strong R&D team composed of experienced electronics and embedded programming engineers.

Technical specification

Dimensions and weight

Height 262 mm
Width 235 mm
Depth 176 mm
Weight 3.4 kg

Technical specification

Meter Variant UG G4 / 2UG G4 / 2UG G6
Cyclic Volume (dm3) 1.2 / 2.2 /
Max working pressure (mbar) 75* (up to 500mbar on request)
Starting flow rate (dm3/h) 5.0
Connection Centres 6” (152.4 mm)
Gas Connections (BS 746) 1”
Max Index Reading (m3) 999999.999
Operating Temperature (0C) -25 to +55
Storage Temperature (0C) -25 to +60


Full service

We offer full support with setting up the production – from designing production process, supplying production test and control devices to providing support production software.
Contact
Full service

Settings and installation

Complying to the Standards of the each country that is introducing a Smart Metering Rollout (SMETS 2, GBCS 4, DSMR 5-6, DLMS etc.) and fine-tuning functionality with the customers. Tariffs, Prepayment functionality, Valve control, Security communication protocols, Ingenious easy to use User Interface, two-way wireless communication, Over The Air (OTA) firmware upgrade enabled etc..

Shipment

Production, sales and shipment is organized by our partner company George Wilson Industries Ltd.

Guarantee

MID, ATEX, CPA (NCSC), TRAC, RED approved. Lifespan of the (exchangeable) battery 10-15years on normal operations (depending on the functionality), tamper attempt detection sensorics, battery power drain monitoring, alarm raising etc.

Full support

Full support in R&D process (adjustment to specific request of the each country standards and customer demand), verifications, introduction to production and full support during whole lifespan of the product. Full maintenance of the product design throughout its lifespan.
